IoT devices require a more flexible architecture to meet the needs of different customers. Our sensing control platform naturally comes with such characteristics:
- 8 independent channels capable support up to 32 sensor nodes.
- Fully asynchronized parallel processing
- Industrial standard wired protocol
- Various wireless communication capabilities
- Remote access from Internet
- Multimedia Man-machine interface
- Edge Computing
Platforms and Modules

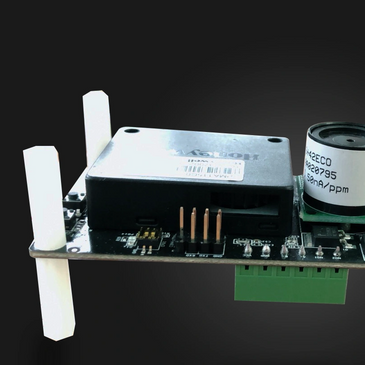

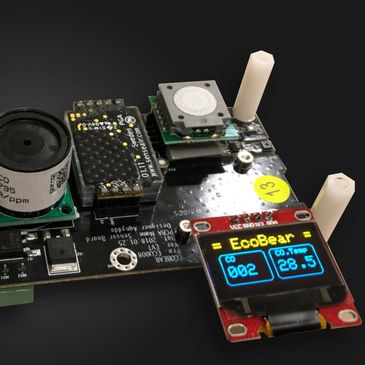

Sensor Fusion Platform
Multi-channel configurable sensing platform
ECO-008 Basic Air Quality Sensing Platform
- Multi-tasking multi-channel I/O
- Built in 4-cell TVOC and Temperature and Humidity Sensors
- 4 wireless communication I/F
- MODBUS RTU over RS485
ECO-009 Basic Agriculture Sensing Platform
- Multi-tasking multi-channel I/O
- Built in Temperature and Humidity Sensor
- 4 wireless communication I/F
- ADC and ALARM Control I/O
- MODBUS RTU over RS485
ECO-010 Fully Configurable Sensing Platform
- Multi-tasking multi-channel I/O
- Built in Temperature and Humidity Sensor
- 2 independent wireless communication I/F
- Full color Breathing Light
- MODBUS RTU over RS485
MMI with Controller
Industrial Level quality touch MMI with open operating system
ECO-5507-AN6 MMI Control Platform
- Android 6.0 OS based Touch Platform
- ARM Cortex A7 x 4 cores
- 1GB DDR3 SDRAM + 8GB eMMC Storage
- Communication: Wi-Fi 802.11 b, g, n; Bluetooth 4.1, Ethernet
- Control: RS485
- 1024x600 Resolution TFT LCD with 5 point capacitive touch
Sensor Modules
EcoBear Certified Sensor Module
ECO-401-TVOC TVOC Module
- 4 cell MEMS sensor
- Standalone TVOC and CO2 Equivlent Output
- TVOC 20-1,600 ppb with resolution 1 ppb
- Auto Background Calibration
ECO-402-PM2.5 mini Laser PM2.5 Module
- Laser PM2.5 sensor with proactive intake fan
- 0-1,000 µg/m3 with resolution 1 µg/m3
ECO-403-CO2 NDIR CO2 Module
- High Accurate NDIR CO2 snesor
- 0-10,000 PPM with resolution 1 PPM
ECO-404-CO CO Sensor Module
- Electrochemical CO sensor
- 0-600 PPM with resolution 1 PPM
ECO-405-HCHO Formaldehyde Module
- Electrochemical HCHO sensor
- 0-1,600 ppb with resolution 1 ppb
ECO-406-O3
- Electrochemical O3 sensor
- 0-1,600 ppb with resolution 1 ppb
ECO-407-ATH 3-in-1 Sensor Module
- Ambient Light
- Temperature
- Humidity Module
Wireless Communication
With Fully Parallel Computing & Communication Design
ECO-101-802.11 2.4GHz Wi-Fi Module
- 802.11 b,g,n
- Include External Antenna and Cable
ECO-102-BLE Bluetooth Module
- Bluetooth 4.1 LE
